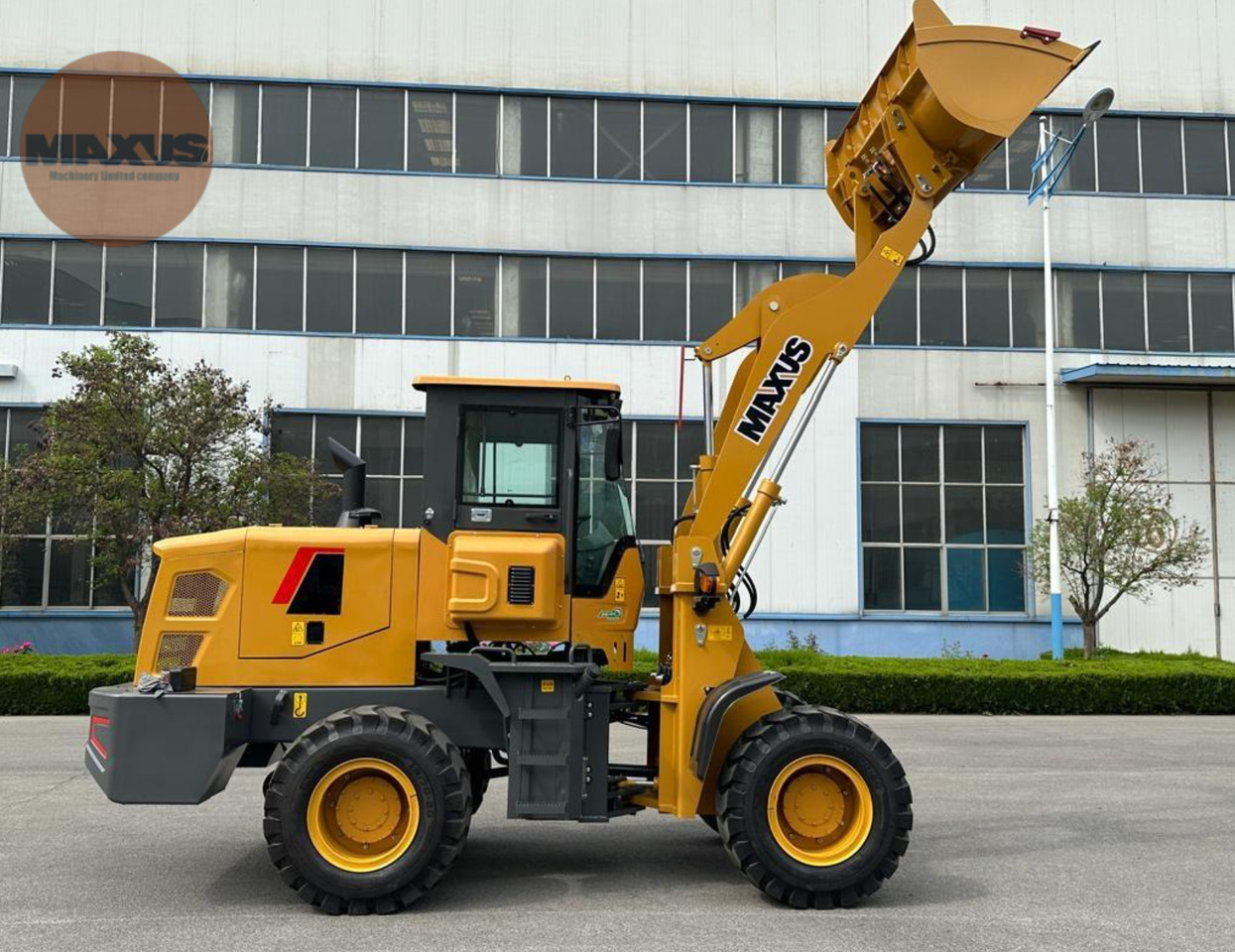

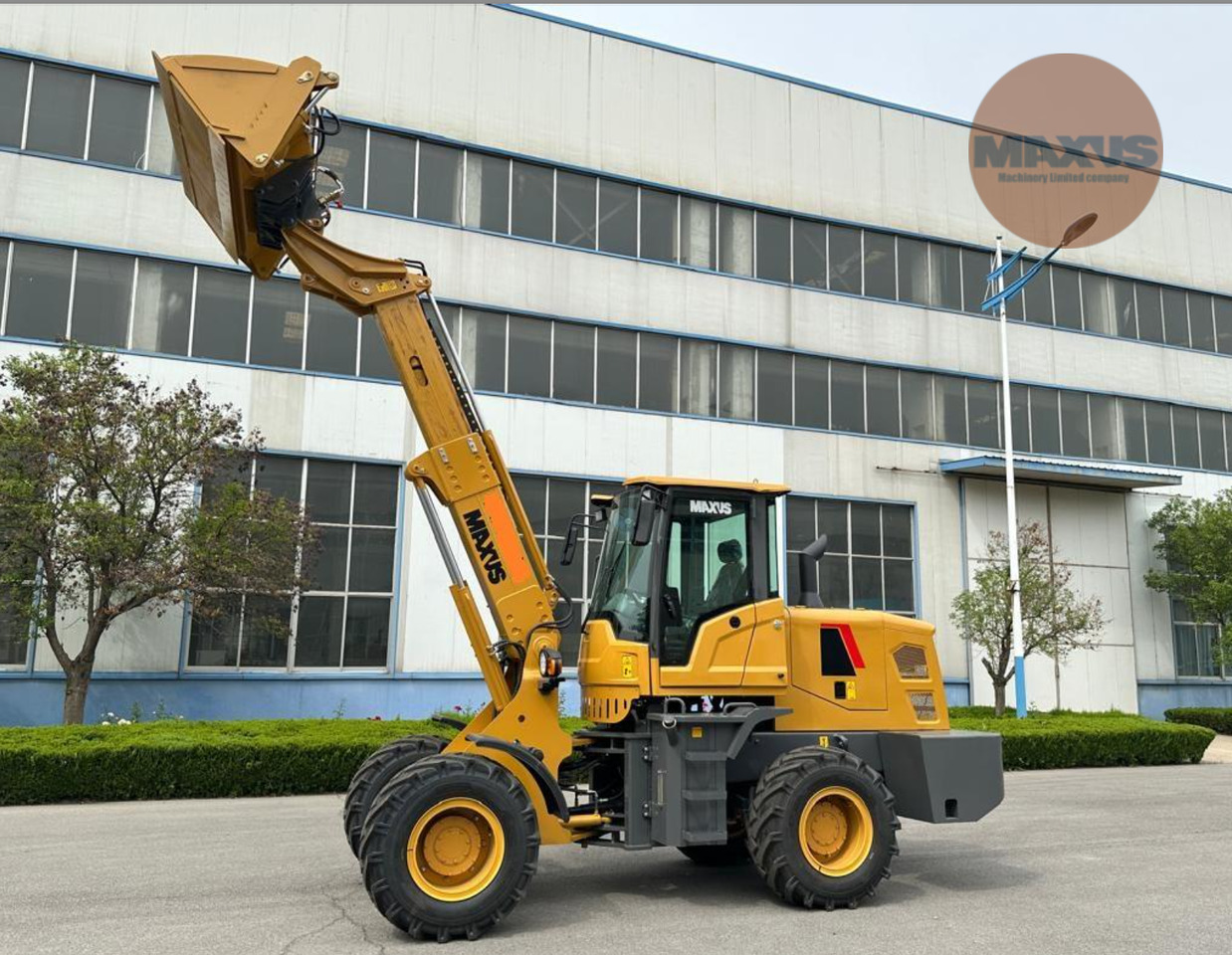

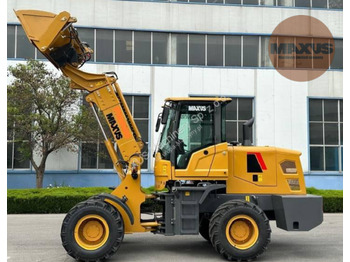

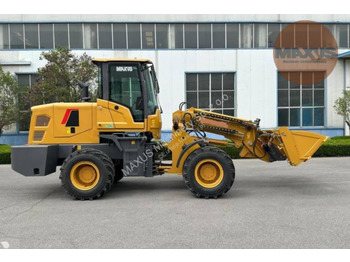

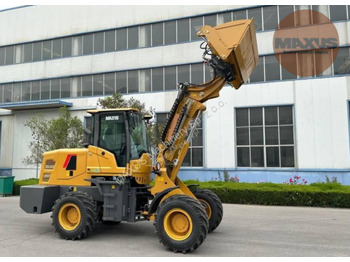

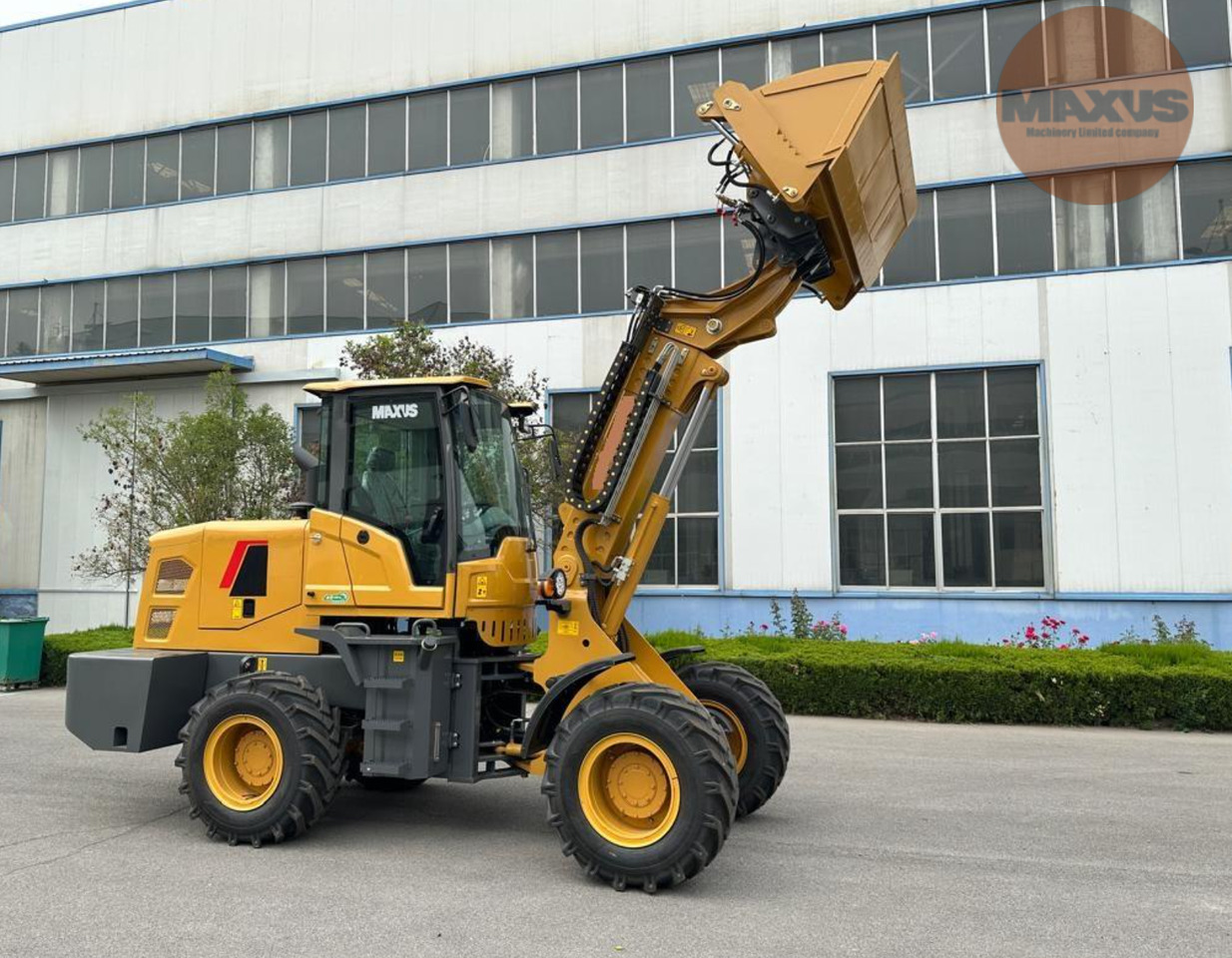

maxus Telescopic Wheel Loader 3500kg - crédit-bail

Brand/Model: Weichai WP6G175E21

(2) Type: Inline system, water-cooled, four-cylinder,

turbocharged diesel engine

(3) Rated power: 92KW 125 HP

(4) Optional model:

HATZ engine

KOHLER engine

2.0 Overall Dimensions

(1) Total length: 8200 mm

(2) Total width: 2350 mm

(3) Total height: 3100 mm

(4) Bucket hinge pin height: 5500 mm

(5) Telescopic stroke: 1330 mm

(6) Extended boom length: 3400 mm

(7) Max. bucket lifting height: 7000 mm

(8) Max. bucket dumping height: 4850 mm

3.0 Transmission System

Gearbox + hydraulic converter + drive shaft + hub reduction axle

4.0 Bucket

(1) Capacity: 1.5 m³

(2) Width: 2300 mm

(3) Type: Heavy-duty bolt-on teeth

(5) Max. Load: 3000 kg (including bucket and attachments)

5.0 Operational Specifications

(1) Steering system:

Articulated hydraulic steering system

(2) Drive system: Four-wheel drive

(3) Hydraulic quick coupler: Yes

(4) Mechanical pilot joystick: Yes

(5) Constant growth

6.0 Brake System

(1) Service brake: Four-wheel disc brake

(2) Parking brake: Disc brake

7.0 Tires

(1) Model: Chevron-pattern tire 17.5-25

(2) Size: Width: 410 mm, Diameter: 1175 mm

8.0 Wheelbase: 2800 mm

9.0 Track: 1700 mm

10.0 System pressure: 20Mpa

11.0 Weight: 9500 kg
