Autocar neuf IRIZAR I6s 12.37

2 microphone(s)

Personal AC

Soft seats

Climate control

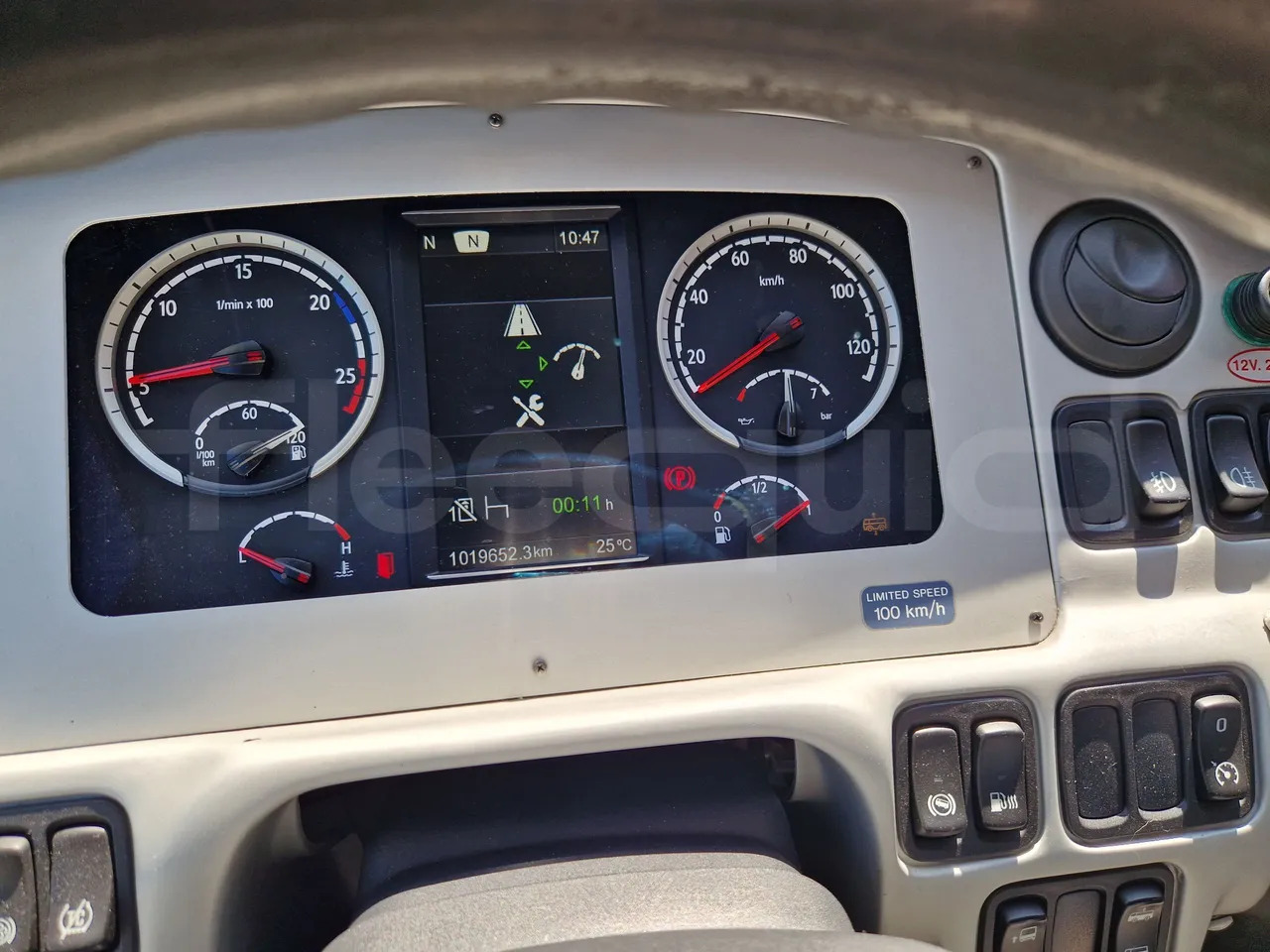

Tachometer

Mirrors heating

Bar

Seats adjustable

Coffee tables

Panoramic windows

Personal lighting

Brake accumulator

Guide seat

EBD

ABD

Armrests

Emergency exit

Headrests

CONTACT: show contacts

IRIZAR i6s INTEGRAL

1. General data / dimensions

Coach: Irizar

Model: i6s

Type: Integral

Length: 12.2 m

Height: 3.93 m

Width: 2.55m

Number of axles: 2

Number of seats 51 + 1 + 1

Production year: 2019

GVW: 19,500 kg

Door arrangement: 1-1-0

Electrically operated door with anti-trap protection and brake lock when open.

Electrically heated multilayer windscreen

Double glazed side windows factory heavily tinted - VG7

2. Suspension system

Front axle: on independent air suspension

Rear axle: on independent air suspension

Suspension: with self-leveling system, vehicle height control from the driver's cockpit and independent tilting of the vehicle to the right

3. Appearance / colors / materials

Color RAL 9003

Exterior mirrors, bumpers, body color radiator grille

Alcoa alloy wheels

The i6 + seats extend to the side and fold out backwards.

Driver and pilot leather seats

4. Engine / cooling system / fuel system

Engine: DAF MX 11 300 kW (410 HP) 10.8 l EURO 6

Engine Torque: 2100Nm (1450-1700rpm))

Fuel tank capacity: 510L

Engine compartment with additional soundproofing insulation

The bonnet is lockable

Diagnostic connector for diagnosing the engine from an external diagnostic device

5. Steering, braking and chassis, gearbox

Multifunctional leather steering wheel adjustable in two planes

Hydraulic power steering

Ventilated front and rear disc brakes.

Anti-lock braking system.

Anti-slip system when starting ASR.

ESC stabilization system.

Electronic braking force distribution EBD

Additional Retarder brake integrated into the gearbox.

A stop brake that prevents starting when the door is open

Automated ZF 12-speed gearbox - Astronic

TPMS - wheel pressure and temperature control system.

LDWS - lane assistant.

AEBS - automatic emergency braking system (anti-collision radar)

6. Vehicle lights / interior lighting / additional signaling

LED headlights integrated with LED daytime running lights.

The stop light is activated when the additional Retarder brake is applied

Fog lights - LED

"Stop" buttons signaling stopping on demand / notification to the driver

Engine compartment lighting

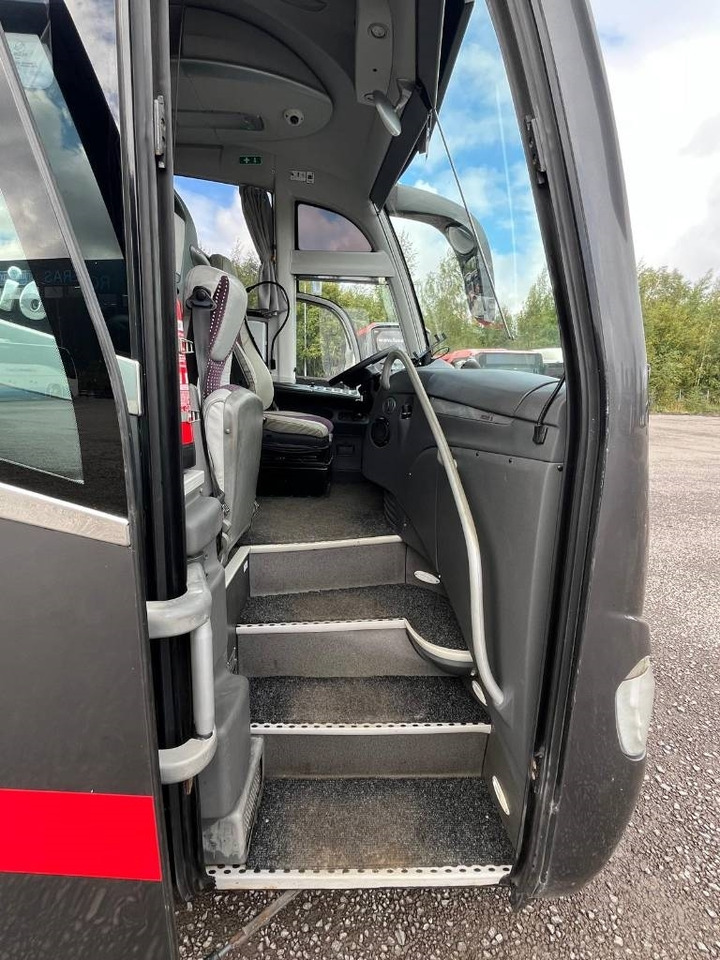

Backlight on bus entrance steps

Indoor and night lighting controlled from the driver's cockpit

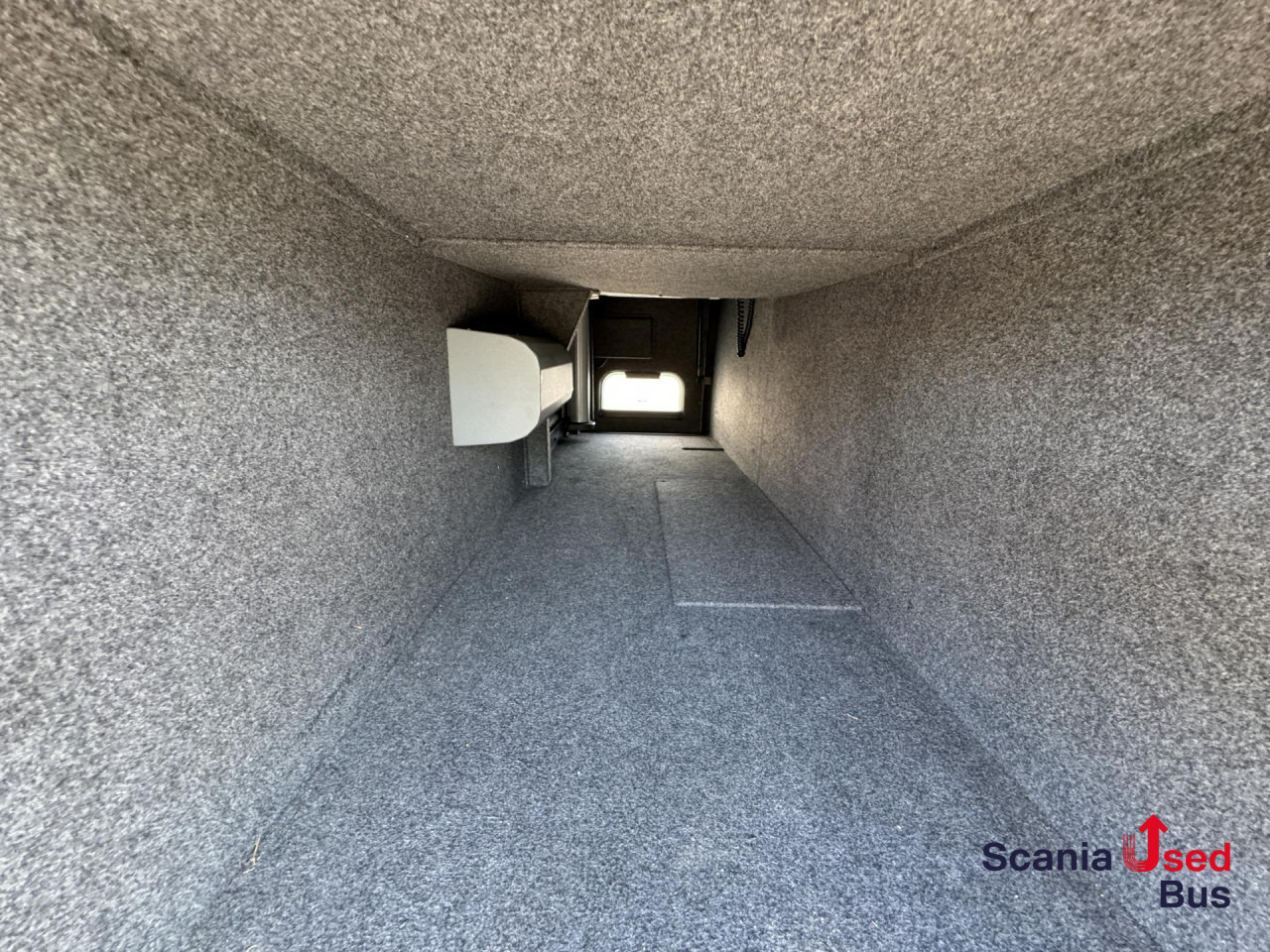

Lighting of the main luggage space

Pneumatic and electric horn

7. equipment

Two-zone air conditioning controlled electronically.

47KW air conditioning compressor

Rear view camera.

A separate 7 inch monitor connected to the reversing camera

Exterior mirrors heated and electrically operated

Interior mirror

The left driver's window is heated and electrically opened

Cruise control with a speed limitation system for steep descents

Maximum speed locking system programmable in the steering wheel.

Outside temperature indicator in dashboard with 4oC temperature signaling

Two switches for the electrical system (main disconnecting the battery, and the second leaving the Webasto power supply, tachograph and car alarm)

Additional heating independent of Spheros engine operation with the possibility of programming 7 days ahead.

Boot lid pneumatically opened upwards with control from the driver's cockpit.

Audio + DVD set with two monitors for passengers.

Frenzel water heater next to the pilot's seat

Driver's bedroom with heating and telephone for communication with the driver.

A fridge in the front of the bus.

Carpets in the central tunnel, at the last row of passenger seats and around the driver's seat

Cargo liners

Adaptation to mounting a Ski-box

8. Driver space:

Pneumatic, driver's seat adapts to the driver's weight, with seat heating and seat back.

5-point pneumatic adjustment of the driver's seat backrest.

Electrically operated front and side left window blinds.

Document safe located under the driver's seat.

Third windshield wiper.

9. Passenger space

Two-point seat belts

Leather headrests in the armchairs

Mesh for the press placed on the back of the backrest

A table by the chair for each passenger

Luggage shelves located above the passenger seats

Individual lighting, air conditioning and ventilation

stop button for each passenger

Curtains at the side and rear windows

Two emergency exits in the roof with manual tilt function

Footrests next to passenger seats
